| Dimensions |
358 x 207 x 451mm (DWH) |
Form Factor |
Mid Tower |
Materials |
Steel+Plastic |
Mainboard Support |
ATX, Micro-ATX, ITX |

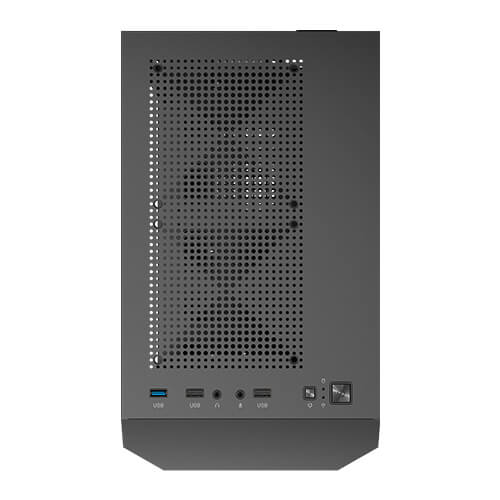

Front Access & Controls |
Power,Reset, 2 x USB 2.0, 1 XUSB 3.0, MIC / HD-AUDIO |
Side Panel |
Tempered glass |
Drive Bays Expansion Slots |
7 |
Drive Bays 3.5″ /2.5″ |
2 / 1 |
Drive Bays 2.5″ |
2 |

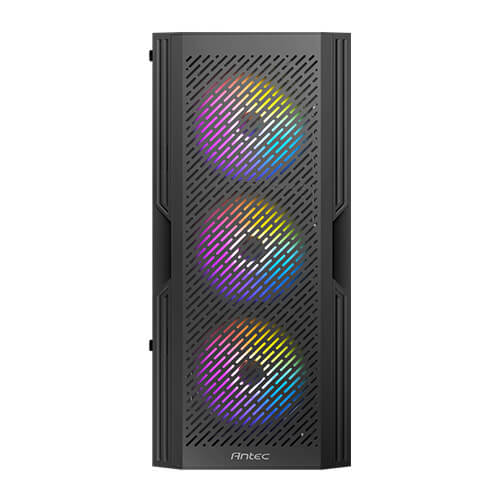

Front Fan Support |
3 x 120mm / 2 x 140mm |
Top Fan Support |
2 x 120mm |
Power supply Fan Support |
2 x 120mm |

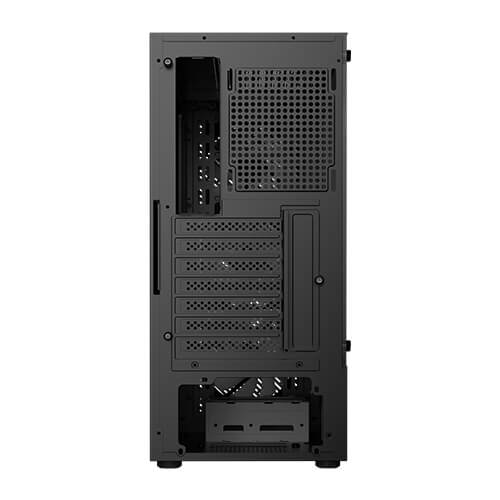

Rear Fan Support |
1 x 120mm |
Included Fan(s) |
3 x 120 RGB fixed model fans in front (AX20) 3 x 120 RGB fixed mode fans in front + 1 x 120 RGB fixed mode fan in rear (AX20 Elite) |
Radiator Support Front |
120 / 140 / 240 / 280mm |
Max GPU Length |
≤ 270mm |
Max GPU Length |
Max GPU Length |
Max CPU Cooler Height |
≤ 155mm |
Max PSU Length |
≤ 170mm(with HDD) ≤ 295mm(without HDD) |
4 Kg (AX20) / 4.12 Kg (AX20 Elite) |

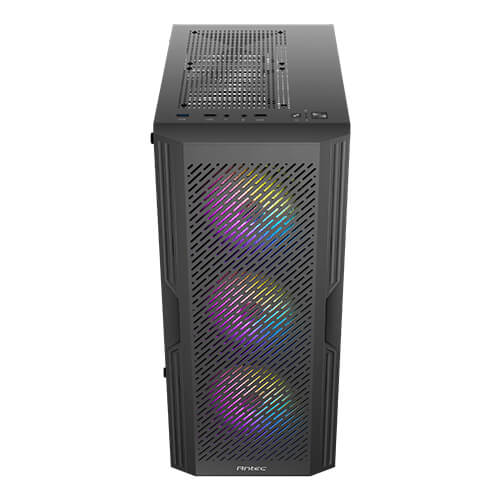

Front |
4.71 Kg (AX20) / 4.83 Kg (AX20 Elite) |
4 Kg (AX20) / 4.12 Kg (AX20 Elite) |
Gross Weight |
4.71 Kg (AX20) / 4.83 Kg (AX20 Elite) |
